Conveyor systems SPBelt are the arteries of your production
Conveyor systems SPBelt are
the arteries of your production
the arteries of your production
– High specific productivity indicators.
– Adaptabilityto integration into automated technological lines.
– Ease of operation to control and regulate the weight of loaded fish.
– Simple design provides easy maintenance.
– Mobility of equipment.
– The possibility of installation on mining, fish processing vessels and onshore enterprises.

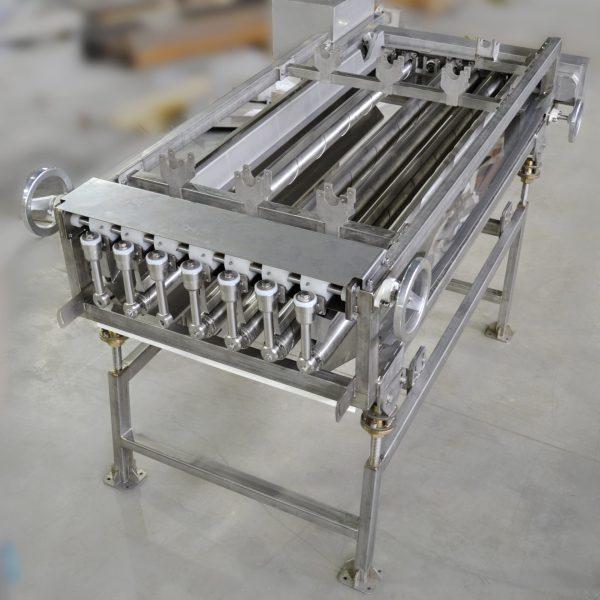

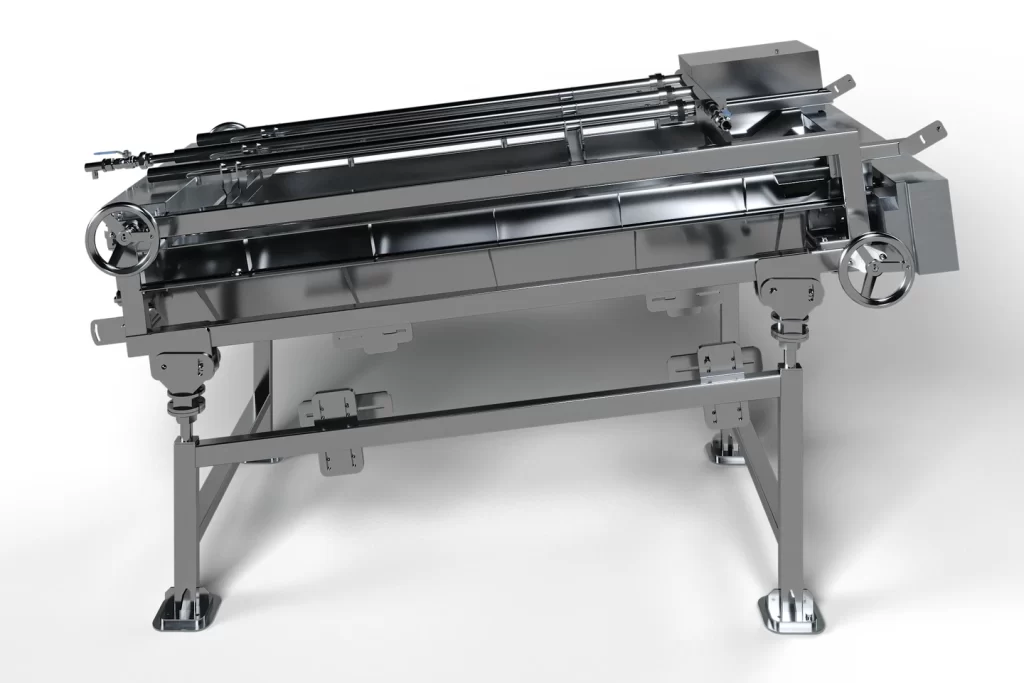

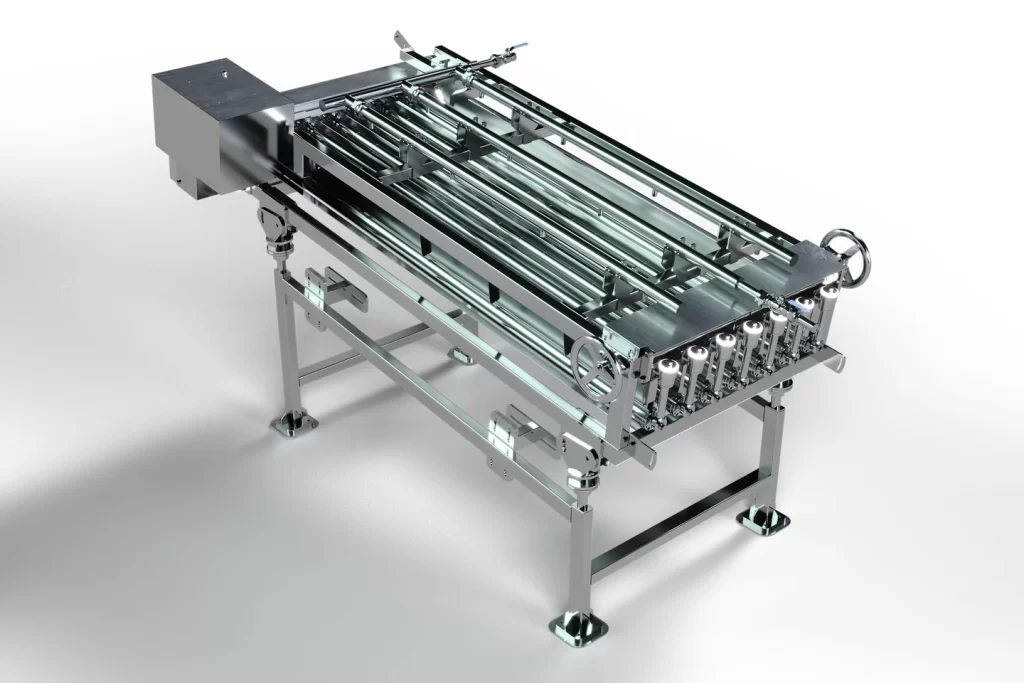

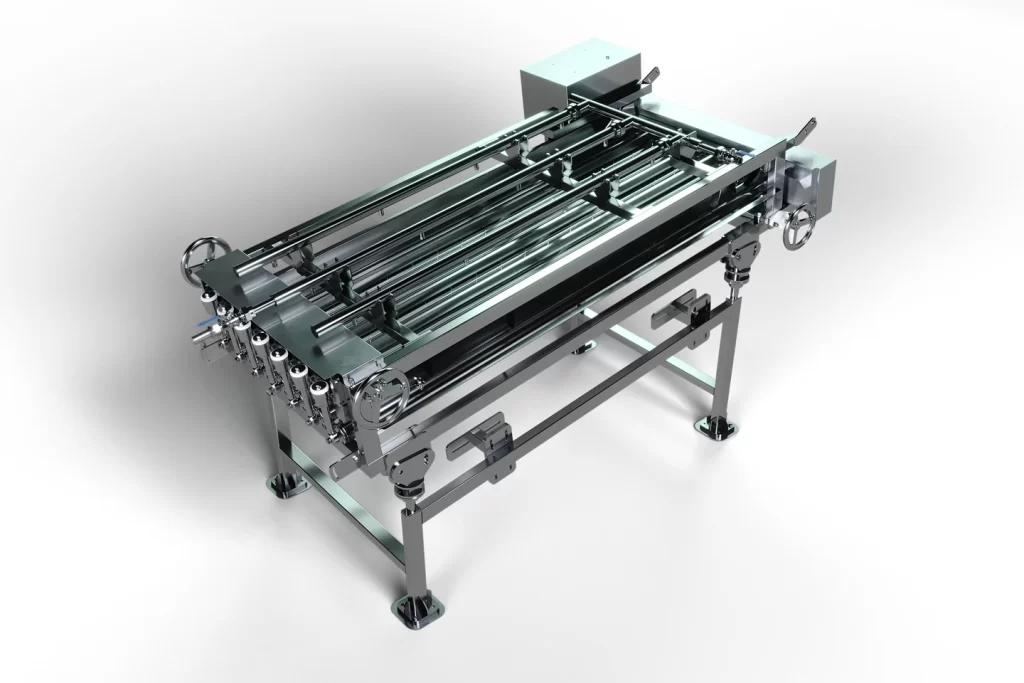

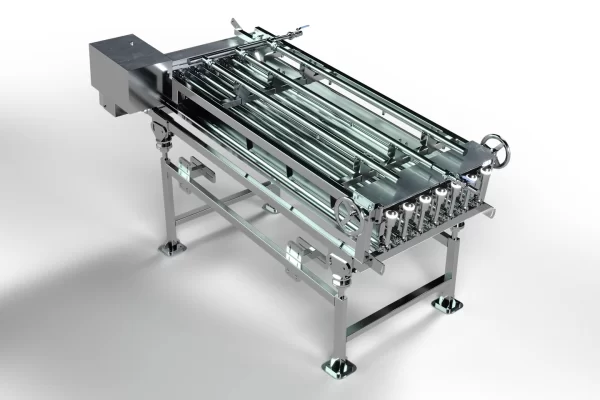

Sorting machine is designed for sorting pelagic fish: mackerel, herring, whiting.
Fish sorting is made by changing the size of the sorting slot between the shafts depending on the type of raw material. Regulators are installed at each end of the machine.
During processing, the fish slowly moves along the rotating shafts of the sorting conveyor line. When the width of the fish matches the width of the gap between the rollers, the fish falls through. Small and medium sized fish fall through the gap between the rollers andfall onto the diverting conveyorgoing to the Fish Milling Machine (FMM) for processing. Larger fish are directed to the exit of the machine and transferred to a conveyor for further processing.
It is possible to adjust the angle of inclination, which makes it possible to adjust the feeding of fish to the sorting device with the highest possible constant speed. The best machine angle is determined experimentally for each type of fish.
The feeding speed of different fish varieties is adjusted by means of a water flushing system. The volume of water supplied is adjusted in such a way that a water film is created over the entire length of the roll. This minimizes possible contact between the fish and the rollers.
Modern full-cycle production allows us to fulfill orders of any complexity on time.
KS SPBelt conveyor systems are checked by the company's service department before shipment, packed for safe and careful transportation.
The conveyors are shipped assembled or disassembled at the request of the Customer.
Delivery in Saint Petersburg and the Leningrad region by motor transport of KS SPBelt LLC or by hired transport
Pickup of products from our warehouse located at: St. Petersburg, Kubinskaya str., 76, room 6
Transport companies in the Leningrad region and Russia;
We offer 2 options for working with transport companies:
We deliver the goods to the transport company that is convenient for you. The shipping cost is paid by you to the shipping company.
We are taking over the work with the transportation company. In this case, the shipping cost will be included in the cost of the equipment.
FTL and LTL delivery by dedicated transport.
The client needed to manufacture conveyor and process equipment for a production line for product processing on a fish trawler within a tight deadline. The main difficulty of the project was the production of equipment for sorting pelagic fish. The European supplier that previously supplied it left our market, and many Russian enterprises had no experience in creating an analog of an imported sorter.
The customer received the equipment for the process line in full accordance with his needs and objectives within the established timeframe. The customer noted the high quality of our equipment, paying special attention to the sorting device, which is not inferior to the original, and in certain characteristics even surpasses the imported sorter.
A large Russian manufacturer of confectionery products approached us with an order to design and manufacture a line for feeding chocolate bars to wrapping machines.
A line for feeding, distributing and packaging chocolate bars has been installed at the Customer's plant. After cooling down to the set temperature, the product is fed to the Gorka conveyor (P.1) to bypass the installed equipment at the customer's site, after which it gets to the group of belt intromats. for distribution to the wrapping machines. It is possible to automatically redirect the product flow to the machines, depending on their filling or to divert them to the buffer conveyor of the accumulator.
The client needed to develop equipment for efficient defrosting of herring fish blocks and herring fillets. The task was to create a system that would ensure uniform defrosting of the product as a result of water and air circulation. Foreign suppliers who manufacture defrosters have either left our market or the cost of delivery has increased many times.
The supplied equipment allowed the client to significantly improve the efficiency of the fish defrosting process, reducing time costs. The client emphasized the high quality of the end product - herring and herring fillets, and also noted that our equipment is not only comparable to imported defrosters, but also exceeds them in a number of parameters.
An ice cream manufacturer needed to equip two new ice cream production facilities with modern conveyor lines for packaging and transportation of products to the freezer warehouse.
The customer received the conveyor system on time, which ensured a stable and efficient production process. This is a step towards improving overall quality standards and production efficiency. A total of 73 units of conveyor equipment were manufactured and 1 km of slat chain was installed, which shows the scale of the realized project.
The customer required a belt conveyor to transport mineral boards on a packaging line.
The SPBelt solution significantly reduces conveyor maintenance time, including quick belt replacement, thanks to the unique roller system locking system. The conveyor belt runs smoothly and quietly even at high speeds. Curved conveyors have a wide range of possibilities for in-process transportation of packed and unpacked piece goods and are actively used in logistics and distribution centers, on packing lines and other spheres. KS SPBelt manufactures curved conveyors with rotation angle of 45°, 90°, 135° and 180° and weight load up to 150 kg.
The customer needed to produce an analog of a foreign conveyor for dividing corrugated box cutting streams. It was necessary to provide for the possibility of changing the product entry point and a fixed exit point for centering the product on the production line.
The Divider from KS SPBelt is characterized by high quality of materials and assembly. The customer can be sure that at any time he will promptly receive spare modules and other components in case of need. Before shipment, the operation of the Divider was demonstrated to the customer at our production facility.
In our practice we often encounter a situation when the Customer has neither drawings nor TOR, but only a video of the equipment, the analog of which should be manufactured, and the desired performance. This time the Customer needed to produce a conveyor for receiving and laying out on a metal grid slice of meat products after the slicing area.
A meat slice laying line was integrated into the production line at the Client's facility. The new equipment ensured minimization of manual labor and increased productivity in this area. KS SPBelt specialists will always help to develop a solution and select components taking into account the equipment used in your production and the products being transported.
Portioned pieces of dough were rolling down the inclined modular Z-shaped conveyor as they were moved upwards. A new solution for dough transportation had to be developed.
The client is satisfied with the proposed solution, as he was able to solve his problem and reduce the number of detects in production. The construction of conveyors was optimally integrated into the production line.
