– Saving of working space due to the “broken” design.
– Reduction of equipment cost due to versatility: horizontal and inclined sections in one conveyor.
– Possibility of vertical movement of loads.
– Possibility to equip with reversing function (reverse).

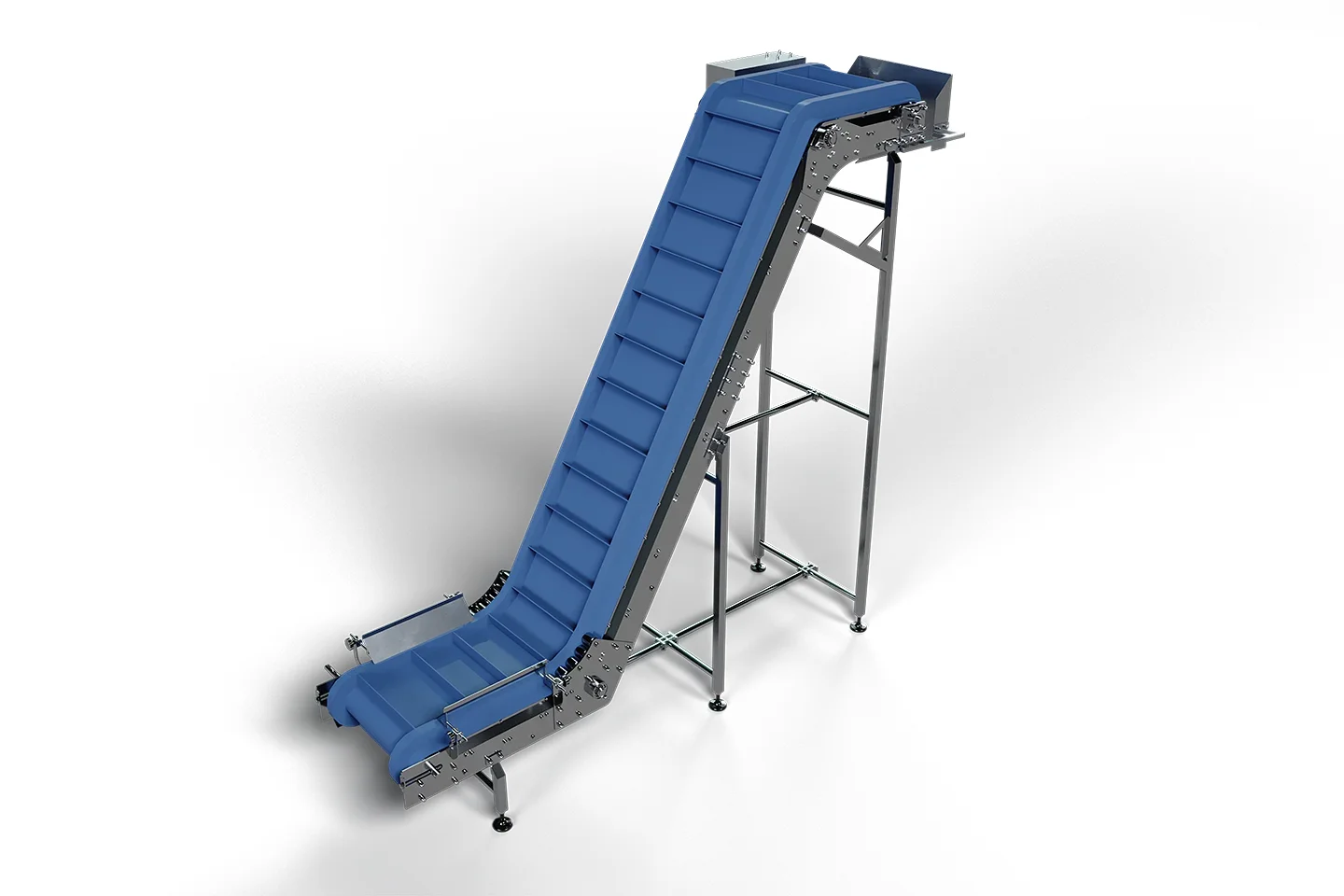

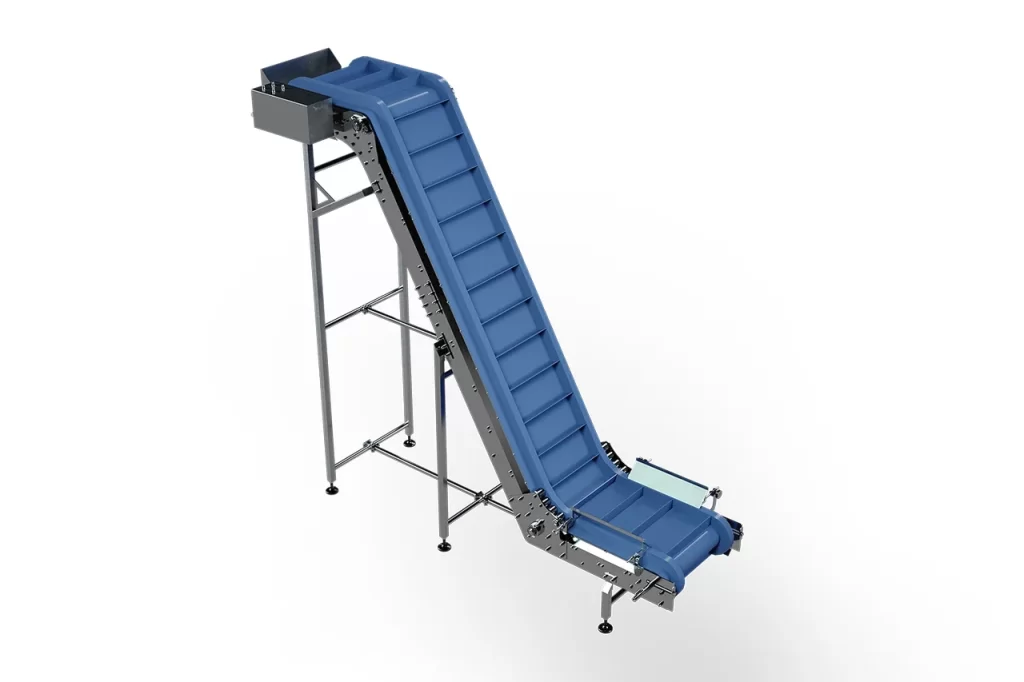

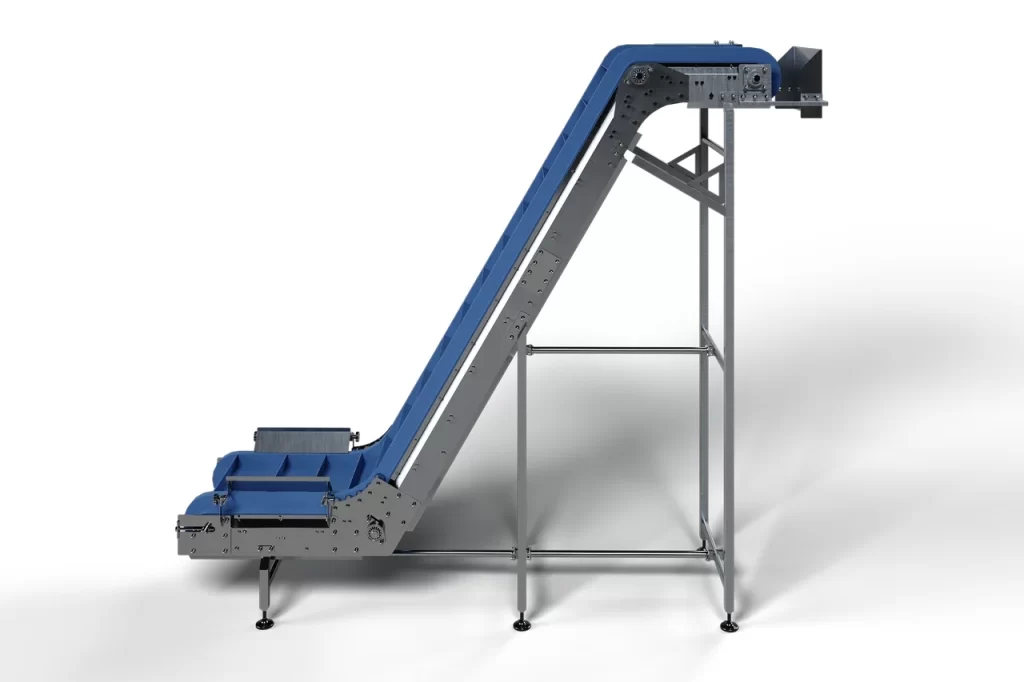

The main task of Z-shaped belt conveyoris to move the load from one height to another. The design consists of 3 sections: horizontal lower, inclined and horizontal upper, forming a single conveyor system in the shape of the Latin letter Z..
Z-shaped conveyors are used mainly for transportation of loose goods, for example, food products (snacks, salt, sugar, cereals, fruits, semi-finished products, etc.), as well as granular and small lumpy goods, containers of insignificant weight..
Therefore, belts are additionally equipped with sidewalls, flights to prevent spillage and mixing of cargoes. Transporters of this type can be stationary and mobile. The angle of inclination reaches 90°.
The speed of movement on all sections of the Z-belt conveyor is the same, as the belt is driven by a single gearmotor.
KS SPBelt conveyor systems are checked by the company's service department before shipment, packed for safe and careful transportation.
The conveyors are shipped assembled or disassembled at the request of the Customer.
